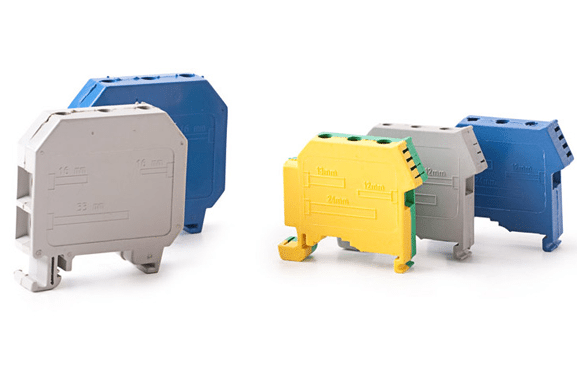

Lighting Pole Terminal for DIN Rails

Description

Terminals for public lighting poles. Nominal voltage: 400 V. Insulation: 2500 V. Mounting rail: DIN 46277 / 3.

Material:

Connectting block:

Brass.

Insulation:

PA self extinguishing UL 94 V-O.

Screws:

Galvanized steel.

Cat. No.	Description	Conductor Cross- Section sq. mm		Dimensions mm			color	No of pcs. per pack
		incoming	outgoing
				H	T	L
1 Pole Terminal Rail Mounted
101723116	2x16	2x4-16	1x1.5-6	44	10.4	51	Gray	50
101723235	2x35	2x16-35	1x1.5-6	57	14.5	55	Gray	25
101723316	3x16	3x4-16	1x1.5-6	54.8	10.8	52.5	Gray	50
101723335	3x35	3x16-35	1x1.5-6	63	14.5	59	Gray	25
101724116	2x16	2x4-16	1x1.5-6	44	10.4	51	Blue	50
101724235	2x35	2x16-35	1x1.5-6	57	14.5	55	Blue	25
101724316	3x16	3x4-16	1x1.5-6	54.8	10.8	52.5	Blue	50
101724335	3x35	3x16-35	1x1.5-6	63	14.5	59	Blue	25
101725116	2x16	2x4-16	1x1.5-6	44	10.4	51	Yellow-Green	50
101725235	2x35	2x16-35	1x1.5-6	57	14.5	55	Yellow-Green	25
101725316	3x16	3x4-16	1x1.5-6	54.8	10.8	52.5	Yellow-Green	50
101725335	3x35	3x16-35	1x1.5-6	63	14.5	59	Yellow-Green	25
1 Pole Terminal Rail Mounted - Tin Plated
Suitable for Aluminum and Copper conductors
Cat. No.	Description	Conductor Cross- Section sq. mm		Dimensions mm			Color	No of pcs. per pack
		incoming	outgoing
				H	T	L
101721116	2x16	2x4-16	1x1.5-6	44	10.4	51	Gray	50
101721235	2x35	2x16-35	1x1.5-6	57	14.5	55	Gray	25
101721316	3x16	3x4-16	1x1.5-6	54.8	10.8	52.5	Gray	50
101721335	3x35	3x16-35	1x1.5-6	63	14.5	59	Gray	25
101722116	2x16	2x4-16	1x1.5-6	44	10.4	51	Blue	50
101722235	2x35	2x16-35	1x1.5-6	57	14.5	55	Blue	25
101722316	3x16	3x4-16	1x1.5-6	54.8	10.8	52.5	Blue	50
101722335	3x35	3x16-35	1x1.5-6	63	14.5	59	Blue	25
101720116	2x16	2x4-16	1x1.5-6	44	10.4	51	Yellow/Green	50
101720235	2x35	2x16-35	1x1.5-6	57	14.5	55	Yellow/Green	25
101720316	3x16	3x4-16	1x1.5-6	54.8	10.8	52.5	Yellow/Green	50
101720335	3x35	3x16-35	1x1.5-6	63	14.5	59	Yellow/Green	25
